Flexible Dog Kennel Wall Panels


SKU LV-18-30-100

Our Flexible Dog Kennel Wall Panels are a commercial grade HDPE plastic that can be used to protect your dog kennel walls with a smooth, puncture resistant, and easy to clean lining. It is available in thickness options ranging from 30 mil to 100 mil and a variety of roll widths.

The flexible dog kennel wall panels have an estimated material lifespan of 100 years when they are not installed in direct sunlight. They will not rot or mildew and are made in America.

Material Thickness:
30 mil = 1/32”
40 mil = 3/64”
60 mil = 1/16”
80 mil = 5/64”
100 mil = 3/32”

*The widest HDPE roll that we offer is currently 5’ (60 inches).

Please note that we are unable to provide custom roll lengths.

Plastic Sheeting

  • Material: High Density Polyethylene
  • Texture: Smooth
  • Size: Various
  • Need a Written Quote? Request Online >
  • Volume Pricing on Orders $6,500+
  • Questions? Call (800) 621-5381

Product Features

  • Waterproof
  • Commercial Grade
  • UV Resistant
  • Will Not Rot or Mildew
  • Non-Biodegradable
  • Non-Resistant to Rodent and Insect Damage
  • 100 Year Material Lifespan
  • Made in the USA

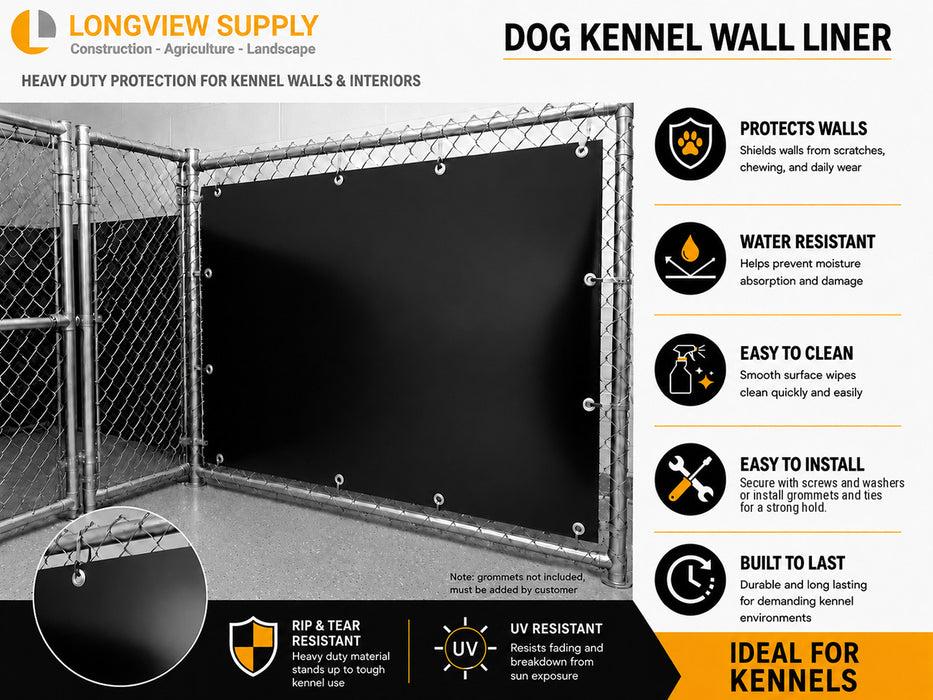

When installing with a chain link or wire fence:

  • Start by cutting the liner to fit your area
  • Choose and end to start with and drill 2 holes in the liner greater than the width of the wire you are attaching it to and at least one inch from the edge. (This can be reinforced with grommets if needed)
  • Insert a zip tie from the backside of the wire and loop it through the hole and then back through and secure it on the backside every 12"
  • Then repeat the same on the bottom and around the entire wall every 12”
  • Once completed use flush cuts to cut off the excess zip ties and remove any sharp edges

When installing on a solid wall:

  • Start by cutting the liner to fit your area
  • Choose one side to start on and screw to the wall using a roofing screw so it has the waterproofing shank attached to it
  • Screws should be installed top screw, and then bottom screw all the way around the wall every 6" to 12" to help minimize any bubbling
  • In corners where there is a seam (if applicable) it is best to use a waterproofing tape or mastic underneath the barrier and on top of it as well to prevent any water or urine intrusion

Cleaning as needed using warm water and a drop of dish soap if needed. A cotton or microfiber towels works best.


  • Ships Free (standard ground, see map)
  • Expedited shipping only available on orders over $2,000

Shipping estimates shown on the map pertain to this specific product only. HDPE orders typically ship same day if the order is placed before 12:00 noon CST. Transit times displayed in the map are listed in business days, and are approximate. Transit times are subject to stock levels at regional warehouses. The day that the order is shipped is not counted as a transit day.

Thickness comparison

The below is a thickness comparison of the material. HDPE plastic thickness is measured in "mils" which is "thousands of an inch".
